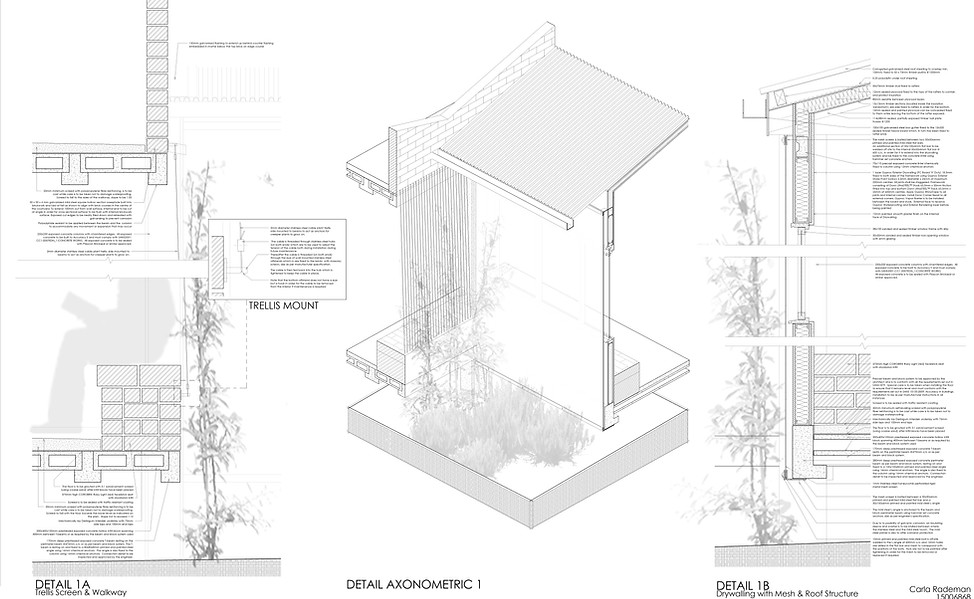

Detail 1 sheet.jpg

Healing & Climate Adaptation
Student Project (Honours)

Project Type:



Project Name:

Year:

Location:

Further information:





Studio Leader

Key terms:

Student – BArch(Hons)

Architecture - Climate Adaptation and Mitigation

Climate adaptation through Eco-mimicry

2020 – Quarter 3 & 4 design project

Melusi informal settlement to the west of Pretoria, Gauteng

  • The project's brief was formulated within an existing project being developed in Melusi in relation to the Melusi clinic and research center being run by UP

  • High resolution construction details can be found here

Jan Hugo

Climate adaptation and mitigation; Melusi, eco-mimicry, systems thinking, vulnerability mapping

Project Summary:

This project is a Healing and Knowledge Management Center and is intended to function as an extension to the Melusi Clinic.  This project specifically focusses on the potential ways in which architectural planning and building strategies can emulate nature’s intrinsic logic while catering to the individual reactions of users.  Subsequently there is a strong emphasis on both the environment and the individual experiences of users

Section A.jpg
14_Theoretical frameowork.jpg

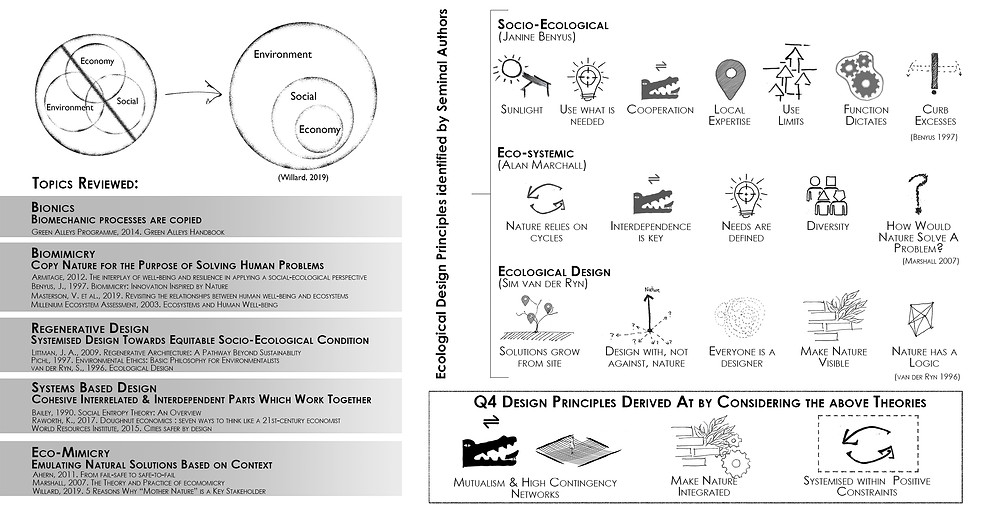

15_Theory Eco.jpg
18_Question Unpacked.jpg
20_Theory applied.jpg
21_Site 1.jpg
22_Site 2.jpg

WALLS:

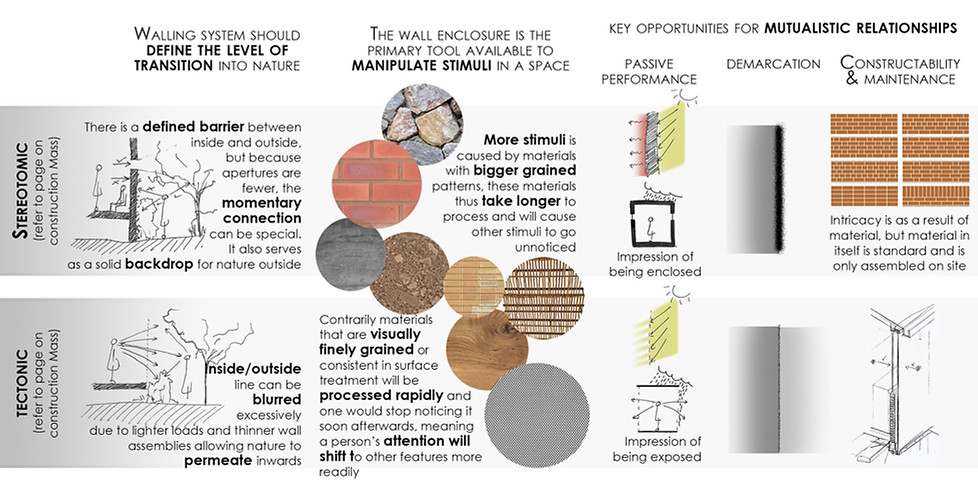

28_Walls 1.jpg

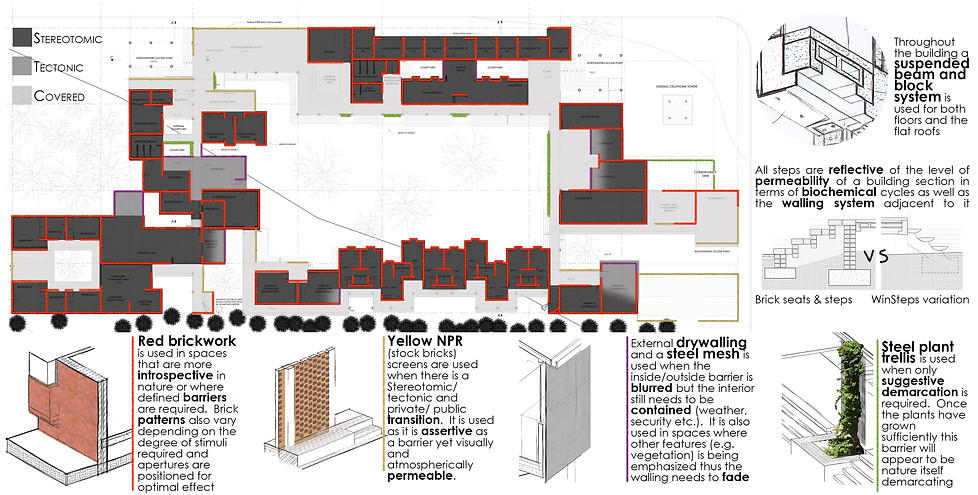

29_Walls 2.jpg

ROOFS:

31_Roofs 2.jpg
32_Passive system.jpg

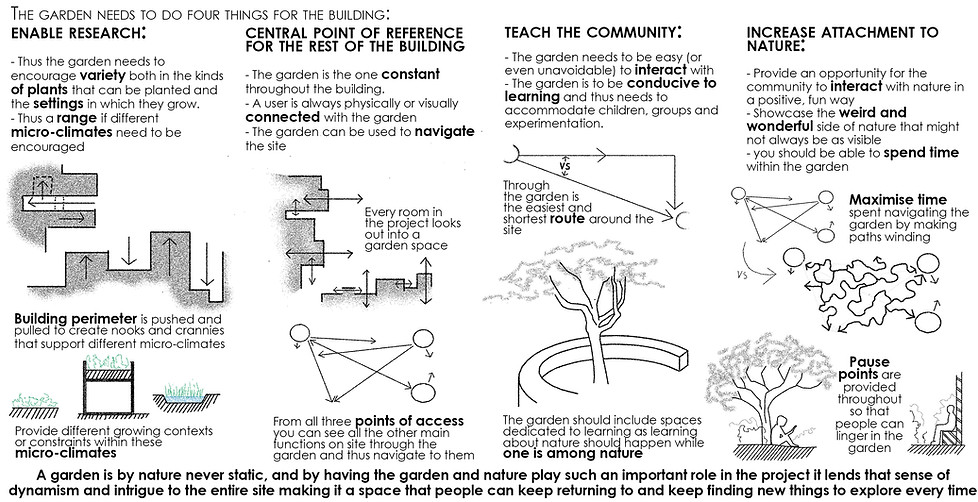

GARDEN:


WATER:

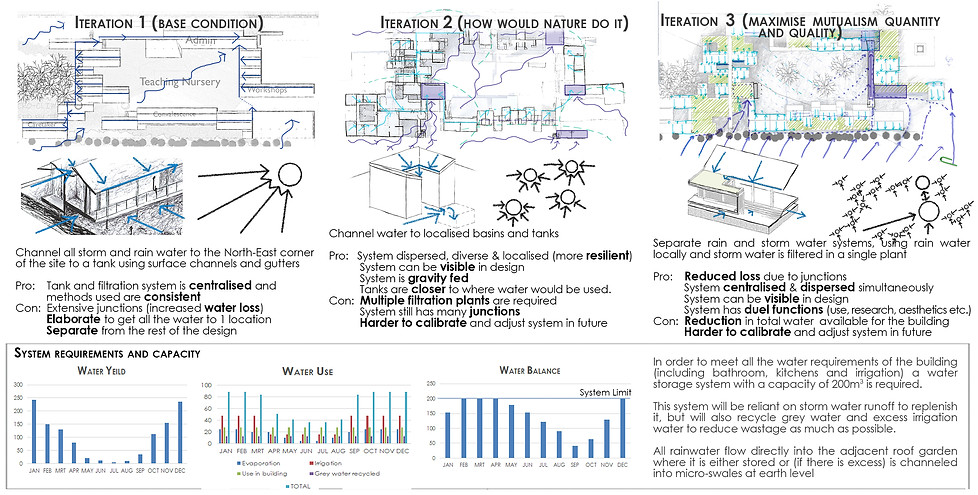

34_Water 1.jpg

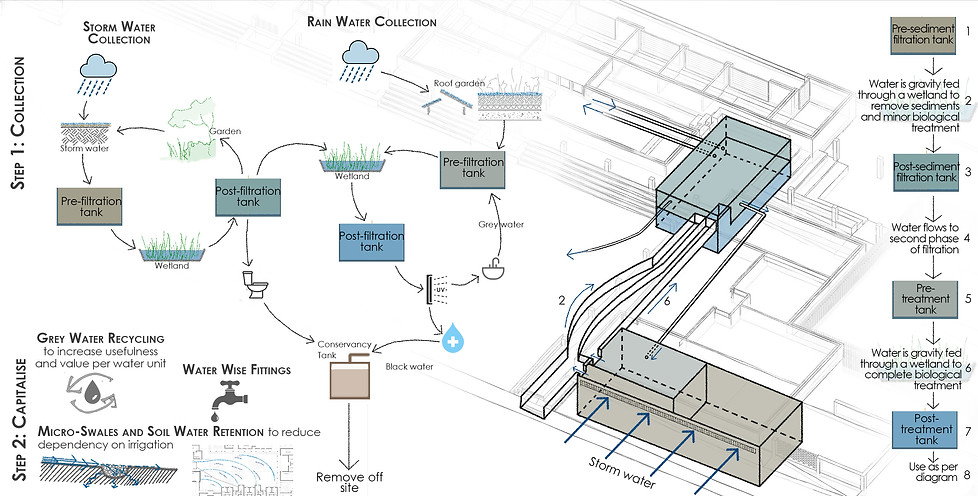

35_Water 2 2.jpg

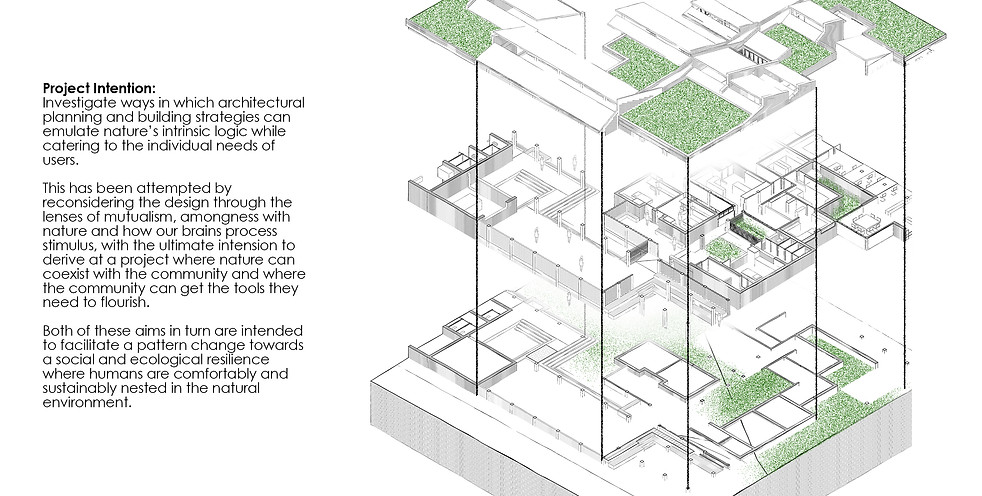

42_Exploded axo.jpg
2020_Q4_Rademan_C_1_Site plan and Northern Elevation.jpg
2020_Q4_Rademan_C_4_Section B.jpg
2020_Q4_Rademan_C_5_Section C and Courtyard Elevation.jpg
Detail 2 sheet.jpg
